Product Details:
|
| Other Name: | Peeler Centrifuge | Operation: | Switch Between Automatic And Manual |
|---|---|---|---|
| Drum Length: | 1000 MM | Separating Factor（Frmax）: | 800 |
| Main Motor Power: | 132 Kw | Main Motor Speed: | 1480rpm |
| High Light: | Peeler Centrifuge 1000 MM,Peeler Centrifuge For Lithium Industry,132 kw Peeler Centrifuge machine |
||

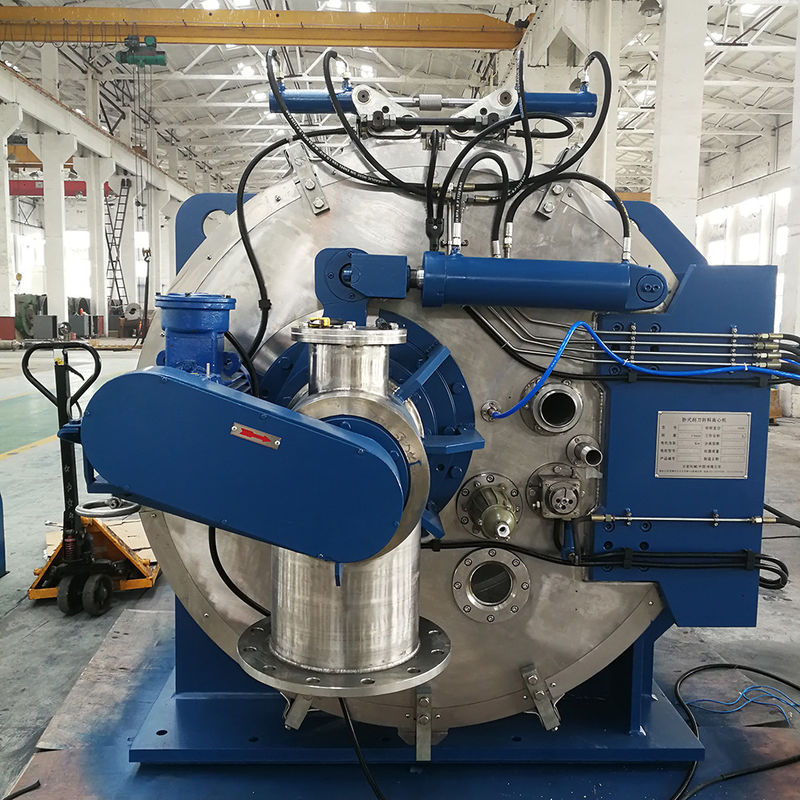

High Productivity GKH Series Horizontal Peeler Centrifuge Factory Price
Product Description
The GK series centrifuge is a filter type centrifuge with automatic clearance operation for scraper discharge. On this machine, it can automatically or manually perform periodic cycle operations of feeding, separation, washing, unloading, and washing the screen. All processes of the machine are carried out at full speed.
This machine adopts an electric hydraulic joint control system, with independent electrical control system and hydraulic system. During automatic operation, the operating time of each process of the machine is controlled by the electrical control system and can be adjusted within a certain time range.
Due to the high separation factor of the machine, the separation effect is good, and it can also effectively wash the solid phase. The solid phase humidity obtained through separation is low. Under the conditions of reasonable selection and use of filter media, the machine has high production capacity. However, due to the high-speed scraper discharge, it has a certain degree of fragmentation of solid particles.
Advantages of peeler centrifuge
1. The machine operation adopts hydraulic control, with a high degree of automation and stable and reliable operation.
2. The electrical system adopts advanced programmable controllers, with accurate and reliable control actions, small size, convenient adjustment and maintenance, high efficiency, and long service life.
3. A rubber damping pad has been designed to greatly reduce the harm to the factory and equipment caused by machine vibration.
4. This machine adopts a hydraulic coupling transmission, which eliminates the need for frequent replacement of friction plates like a friction centrifugal clutch.
5. The machine is equipped with a material layer controller, and users can adjust and control the thickness of the separated materials in the drum according to their usage requirements.
Successfully Application
General requirements for the application range of horizontal scraper discharge centrifuges: separation of solid-liquid two-phase systems with particle size ranging from 10 to 500um, solid phase concentration ranging from 20 to 80% (weight concentration), and liquid phase viscosity less than 10-2Pa. s. In addition, it can also meet the requirements of washing the solid phase. This machine is now widely used in industries such as chemical, light industry, food, pharmaceutical, etc. The separated materials include ammonium sulfate, sodium sulfate, sodium chloride, boric acid, starch, pesticides, synthetic resins, potassium chloride, light sodium carbonate, polyvinyl alcohol, polyoxymethylene, polyethylene, sodium sulfate, caustic soda, salt, fertilizer, aluminum sail, synthetic rubber, and so on.
| Starch | Vitamin B |
| VC natrium | Calcium phosphate |
| Saleratus | Polyacrylonitrile |
Technical Paramaters
| Mofel | GKH 1600 |
| Drum diameter | 1600 mm |
| Drum length | 1000 mm |
| Drum speed | 1550 rpm |
| Maximun separation factor | 950 |
| Main motor power | 132 Kw |
| Loading capacity | 300 Kg |
| Weight | 16000 Kg |
Our service
1 . Technicians are available for overseas service.
2 . 12 months guarantee period from machine arriving date.
3 . The customer could get trained by our experienced technician
4 . We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely
