Product Details:
|
Name: | Small Decanter Centrifuge | Discharge: | Full-automatically |
---|---|---|---|
Operation: | Continually Operate | Material: | 316L |
Warrenty: | 12 Months From Machine Arriving Date | Control: | Controlled By PLC |
High Light: | Small 316L Decanter Centrifuge,Decanter Centrifuge Spray Device,Decanter Centrifuge Device For Food Industry |

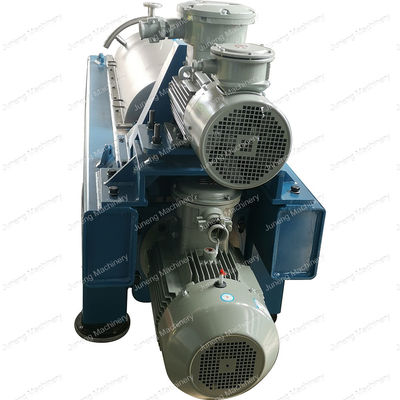

Small Decanter Centrifuge Spray Device Installed For Food Industry
Technical Parameters of Small Decanter Centrifuge
This machine is designated exclusively for separating phases of olive paste .Maximum operating temperature of the machine is 70 °C.
WARNING: Any usage other than the one described here will cause explosion of the machine.Our company will not be liable for damages resulting from this.
Centrifugal decanter is used for the separation of two or more phases with different specific gravity, expecially to separate edible oils from water and solid sediments. Solids-water-oil separation takes place within a cyclinder/ conic-shaped rotating bowl, upon the perifery of which the heavier, solid phase collects and is continually removed by the internal scroll (see Fig.1)The machine is formed of three sections: -a carrying housing with the bowl-scroll 5.1 Machine Function and its sections:
-a carrying housing with the bowl-scroll
-feeding and oil-water (separated phases) exit areas
-transmission Mechanism
Drum inner diameter (mm) | 250 |
Length of drum | 1052mm |
Maximum speed (rpm) | 4200 |
Max treatment capacity of suspension | 1-3m3/h Maybe some difference due to the character of material and treatment requirement |
Material density (g/cm3) | <1.2 |
Application of Small Decanter Centrifuge:
Decanter centrifuge is most often used for removing solids from liquid especially for clarification of liquid containing high concentrations of solid . It is usually used in waste water and PVC sludge industry. And also can be used in sunflower oil, palm oil and tea industry etc.
Introduction of Manufacturer - Juneng Machinery (China) Co., Ltd:
The small decanter centrifuge is produced by Juneng Machinery (China) Co., Ltd. which lies in Nanjing, belonging to Juneng Group.
Juneng Group employs a team of well-trained professional, adopts advance EPR production management model in cooperation with state–of–the–art apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability, and reliability of every product.
Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.
Services Provided:
During selection process :
1. Customized size and structure.
2. Supply reference process flow chart .
3. Markting team will visiting if you need.
4. Integration for control system and process
5. Suggestions and any comments &reflection from customer would be treated in priority.
After sales service :
1. Months guarantee period from machine arriving date.
2. Supply on-site guidance of installation and operation test.
3. Sufficient spare parts in stock are available.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
Contact Person: Lee
Tel: 86-13601538852
Fax: 86-0510-87501218
