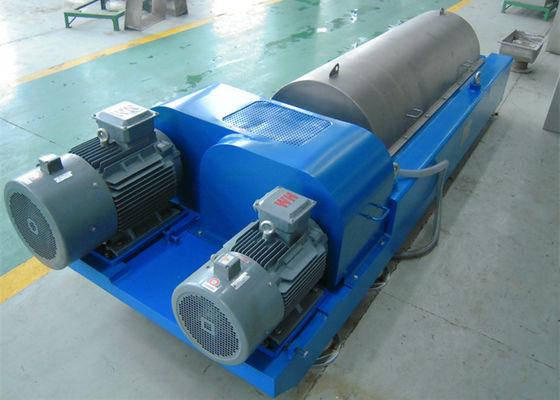

SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment

SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment
SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment
SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment

Large Image :  SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment

Product Details:
Place of Origin: JIANGSU Nanjing
Brand Name: Juneng
Certification: ISO9001& ISO14001
Model Number: LW430
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD15000~100,000/set
Packaging Details: seaworthy packing
Delivery Time: 30~50 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets /months

SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment

Description
Other Name: Tricanter For Aging Oil Voltage: 220V, 380V,440V,460V
Material: SS304, SS316L, SS2205 Control: Automatic Control
Speed: Inverter Control After-sales Service Provided: Online Support
High Light:

Inverter Control Horizontal Decanter Centrifuge

,

SS316L Horizontal Decanter Centrifuge

,

Horizontal Decanter Centrifuge 380V

Decanter Centrifuge Specially For Paper Mill Sewage Treatment


Description



In a sewage plant, what is the process of using a spiral settling centrifuge for desliming?


In sewage treatment plant, in the treatment of activated sludge, the whole process of using spiral settling centrifuge is: through the high-speed rotating drum, to drive the high-speed rotation of sludge, and then generate centrifugal force, so that the solid particles in the sludge settlement is accelerated, and concentrated on the drum wall. Then, through the spiral, the mud cake is scraped to the small end of the drum, so that it can be discharged, thus completing the mud removal work.



Working principle :

SS316L 380V Horizontal Decanter Centrifuge For Paper Mill Sewage Treatment 0


Detailed Product Description

Diameter 430mm  Voltage :  220V, 380V,440V,460V
Speed Inverter Control  Electrical Components:  World Famous Brand
Operation Continuous Separation :  Three phase
Bearing SKF Material :  SS304, SS316L, SS2205
Control PLC Motor :  2





What is the advantage of decanter centrifuge to treat the waste water?



The horizontal screw discharging and settling centrifuge (referred to as horizontal screw centrifuge) with a fully closed and continuous operation with a large length-diameter ratio is used as the main machine of the sewage treatment centrifuge, which has the following advantages:



1. Fully closed operation, clean and pollution-free site.


2. The amount of flocculant and cleaning water is small, and the daily operation cost is low.



3. The equipment layout is compact, covers a small area, can significantly reduce the land acquisition and infrastructure investment.





Other Applications :



The 3-phase decanter separates which contains oil into an oil phase, solids and virtually oilfree waste water. Because of its high dry matter, the solids can be recycled relatively easily.



In addition, the solids concentration in the waste water is lower than would be the case if nozzle separators are used in conventional process.





Advantages :



    1. Lower cake transportation costs due to very dry solids



    2. Better recovery of nutrients due to very high separation efficiency



    3. Lower fresh water consumption compared to other processes



    4. Continuous and fully automatic operation



    5. 24 h operating reliability



    6. Optimum wear protection



    7. Energy saving design



    8.  Easy to operate



    9. Easy to maintain



    10. Simple assembly/dismantling







Features :

  • All parts coming into contact with the product are made of stainless steel.
  • 3-phase AC motor for controlled torque starting via frequency converter
  • Approximately 80 to 90 % of the oil is recovered.
  • Low personnel costs due to continuous and automatic operation.
  • Highest g-force for higher solids output
  • Adjustable bowl speed via VFD
  • Automatic adjustment of differential speed via VFD
  • Two motor drive
  • Belts for both primary motor and secondary motor



Technological Data :



Model Drum diameter mm Inlet liquid capacity㎥/h Power of main/auxiliary motor Kw Weight Kg Dimension (max) mm
LW250 250 1-4 11/4 1200 2650*720*900
LW(F)250 250 1-4 11/4 1200 2650*720*900
LW250(W) 250 1~5 11/4 1300 2750*720*900
LW350 350 5~15 22/5.5 2000 3585*980*1238
LW(F)350 350 5~15 22/5.5 2000 3585*980*1238
LW350(W) 350 5~18 15/5.5 2200 3412*1090*950
LW(S)350 350 2~10 22/5.5 2000 3676*980*1238
LW450 450 5~20 30/11 3000 4380*1080*1360
LW(F)450 450 5~20 30/11 3000 4380*1080*1360
LW450(W) 450 5~28 30/11 3200 4380*1080*1360
LW(S)450 450 5~15 37/11 3200 4195*1080*1360
LW520 520 10~26 45/15 5000 4840*1160*1465
LW(F)520 520 10~26 45/15 5000 4840*1160*1465
LW520(W) 520 10~35 45/11 5000 4840*1160*1465
LW550W 550 10-45 55/11 6500 5038*1388*1578



*** F: Ex-proof, W:Waste water, S: Three phase FS:Ex-- proof and three phase





FAQ :





Q:The paper mill sewage is treated with a horizontal screw centrifuge. It is found that there is a little bit more slag and blockage. How to deal with it?



A:How to judge that the horizontal spiral centrifuge has a little more slag? Is it compared with the same technical parameters before? Or did you change another decanter centrifuge or add too much medicine? Increasing the precision of machine parameters or the dosage of reagents both can bring about more slag discharging. In short, the smaller suspended solids that were previously hidden in the sewage are also separated by centrifugation. If the pretreatment is not done well, it can also increase the solid content of the fluid.



We have 2 solutions to solve the condition of more slag. One is to do a good job of pretreatment to reduce the solid content of the fluid, and the other is to adjust the differential speed of the spiral sweeping paddle of the horizontal screw centrifuge to make the pushing more smooth. We use the juneng horizontal spiral centrifuge, which is very stable in performance. After more than two years of use, there is no sudden change in performance.
