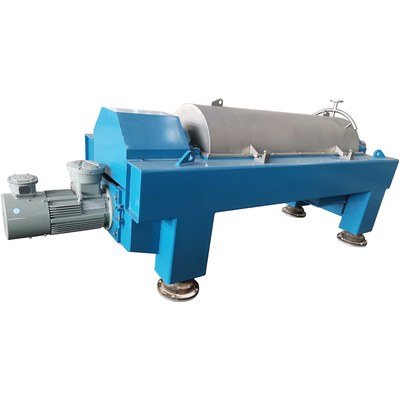

Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw

Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw
Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw
Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw

Large Image :  Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw

Product Details:
Place of Origin: Yixing, Jiangsu
Brand Name: Juneng Machinery
Certification: CE
Model Number: LW350
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: $ 38,000-42,000 / set
Packaging Details: Covered by plastic film
Delivery Time: 70 Days
Payment Terms: TT, L/C
Supply Ability: 10 set / months

Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw

Other Name: Orange Juice Decanter Centifuge Material: Stainless Steel Food Grade
Condition: New Location: In Door
Finish: Polishing Drum Part Wearing Parts: Sealings
High Light:

Orange Juice VFD Decanter Centrifuge Machine


5.5 kw Decanter Centrifuge Machine


350 Mm Decanter Centrifuge Machine

Juneng Brand Long Service Life VFD Orange Juice Decanter Centifuge Mahine




Centrifugal sedimentation is the working principle of this centrifuge, it can separate two phases (suspended solid liquid and liquid), solid phase is pushed out by spiral continually. This equipment is a constant and high effective equipment which used in separating solid-liquid.


It has a good applicability for many material and can be widely used in chemical industry, light industry, food, paper, mining and other industrial sectors. It applies to carry out separating liquid and solid of the suspensions material which weight thickness of solid phase ≤ 10% (or volume concentration of ≤ 50% after settlement24 hours) and equivalent diameter of solid-phase particle ≥ 0.005 ~ 2 mm, liquid-solid density difference ≥ 0.05 g / cm 3, such as calcium carbonate, calcium sulfate, polyvinyl chloride, lees, bean dregs , soy protein, paper pulp, vegetable oil and palm oil, kaolin, white mud, sludge from environmental protection industry and also applies to various types of chemical products which use settlement centrifugal separation principle, these material all can be carried out effectively.




If not indication, the parts of centrifuge which contact with materials are stainless steel and other parts which not direct contact with liquid, such as seat, main bearing sear etc. are steel, cast iron or other suitable types materials.

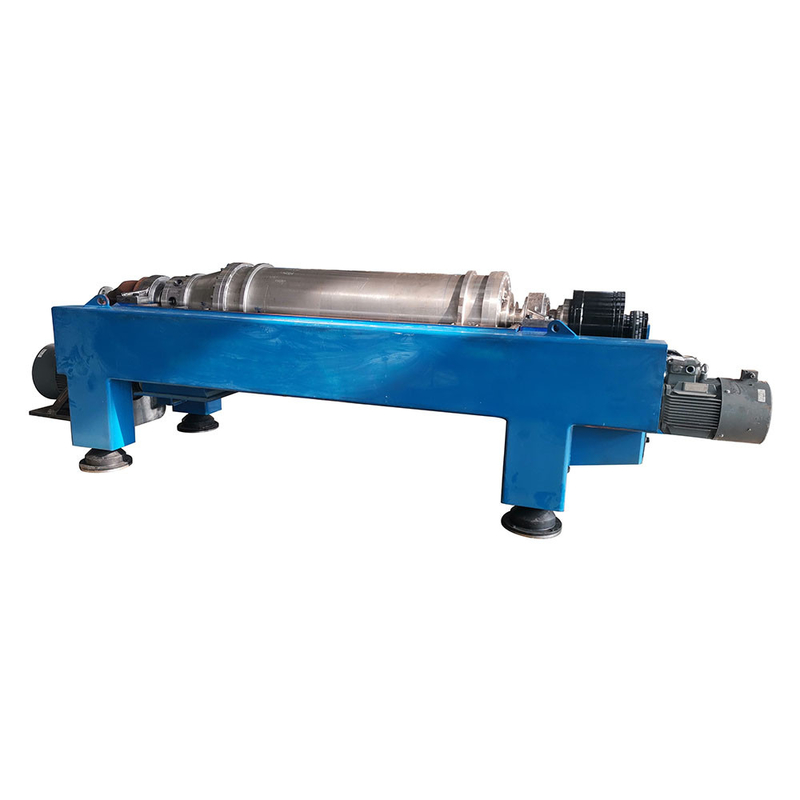

Juneng VFD Orange Juice Decanter Centifuge Mahine 350 Mm 5.5 Kw 0


Work Principle:


The centrifuge consists of two rotors, one called a drum, and the other rotor is a screw discharger (referred to as a screw). When the drum rotates at a high speed, the slurry inside the drum rotates with the drum and is subjected to a centrifugal force that is many times greater than gravity. In this way, solid particles will be separated from the liquid and settle onto the inner wall of the drum from the centrifuge drum shaft. The screw discharger located inside the drum rotates at a speed lower than the drum and pushes the deposited solid particles to the slag outlet, The differential rotational speed between the outer drum and the screw discharger depends on the transmission ratio of the differential and its rotational speed.


Main Technical Specifications:


Big end of drum diameter 350mm
Drum type Cylinder-tamper type
Drum max. speed 3600r/min
Separation equation Approximate 3133
Spiral type Single ended, right handed


Company Profile:


Juneng Machinery Group is a global group company specializing in the manufacture of filters, centrifugal separators and pressure vessels. It consists of Juneng Machinery (China) Co., Ltd., Jiangsu Juneng Machinery Co., Ltd., and Wuxi Hexiang Equipment Biochemical Co., Ltd. There are large production bases in Hong Kong, Nanjing, Wuxi and Yixing respectively. Mainly engaged in the research, development, manufacture and sales of filtration equipment, separation equipment and pressure vessels, it has become a leader in the domestic filtration separation and pressure vessel industry and an important global supplier.

The company covers an area of 500,000 m2, with a construction area of 285,000 m2 and an annual sales of over 800 million yuan. It has more than 1,000 employees, including 50 with senior professional titles and 320 with intermediate professional titles. The company has more than 2,000 sets of various medium and large-scale production equipment, of which a single hoisting crane is 100T, and the largest single equipment manufacturing capacity can reach 16 meters high and 200T weight. The annual output is more than 800 sets of centrifuges, more than 2,000 sets of separators, more than 5,000 sets of filters, and more than 1,000 sets of pressure vessels and non-standard equipment.

Juneng has more than 30 years of experience in design and manufacturing, and has more than 50 patented technologies. Its products have achieved advanced, market-oriented, large-scale and industrialized development, with a market coverage rate of more than 80%. It has been successfully used in environmental protection, chemical industry, Pharmaceutical, oil, food, beverage, minerals, paint and other industries, and has an excellent reputation and reputation.

The company has a complete scientific research, testing and testing center. It has more than 300 sets of various testing equipment, complete various testing, analysis and evaluation methods, advanced equipment and instruments, and high professional level of inspectors. Quality control is carried out on several links such as raw materials entering the factory, finished products and products before leaving the factory to ensure that the products are qualified to leave the factory.

The company's quality management system is very complete, product manufacturing procedure documents, quality management system, department responsibilities and post responsibility system are consistent with the quality policy, operation (process) documents and various quality control and management records (tables, cards, reports, etc.) ) complete, witness and ensure the strict implementation of the quality system.

With the world's leading technology, rich field experience, safe and environmentally friendly products, and through value-added technical services, Juneng Company creates greater benefit space for users, and provides high-quality technical services and after-sales services while selling products.
