Product Details:
|
| Name: | Cold Milk Separator | Treatment Capacity (L/H): | 3000-7000 |
|---|---|---|---|
| Voltage: | 220V/380V/400V/440V/460V | Inlet Pressure (Mpa): | 0.05 |
| Outlet Pressure (Mpa): | 0.1-0.4 | Material: | Stainless Steel |
| High Light: | conical disc centrifuge,disc bowl centrifuge |
||

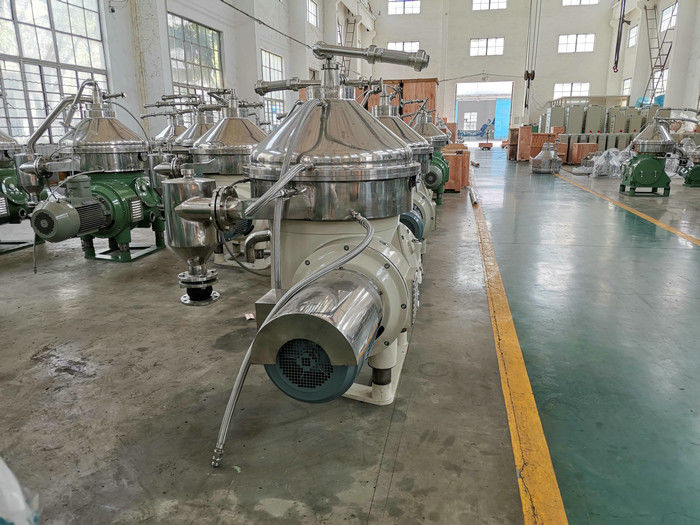

Stainless Steel Warm Cold Milk Separator / Durable Cream Separator Machine
Cold Milk Separator Features:
The Cold Milk Separator adopts the PLC automatic control system, can carry out automatic de-slugging, ability of fitness is stronger, automatic degree is high. Easy to adjust, worker labor strength is opposite to ease, the solids content ratio in the mixture fluid is widely
When working,the sealing water 7 is bumped into the sealing room 6,rising the sliding piston,
and sediment ejection hole 3 is shutted down. then, Milk to be processed are fed to the bowl from feeding pipe1, Under the effects of centrifugal force, the solids which has heavier density is collectedon the bowl wall, After a while, the opening water 7 is bumped into the opening room 5, falling the sliding piston,open the sediment ejection hole 3, impurities are desluged from the bowl. The lighter liquid (fat) flow along the inner side of the discs into the passage in the upper distributor,the lighter product(fat) is discharged from the machine by the lower centripetal pump8.The heavier liquid(skim milk) flow along another passage, discharged from the machine by the upper centripetal pump2.Thus the milk is separated well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in long run.
1)Milk separator and purifier mainly used skim milk, whey separation, butter, wheat shock shower, casein, cheese production, such as anhydrous butter production process of centrifuge enrichment. And the material contact parts are made of stainless steel, in line with food hygiene requirements.
2) The Milk Separator can also be used to liquid-solid twophase separation of similar materials in the industry of juice, beverage and Chinese traditional medicine, etc.
3)The Milk Separator adopts automatic control, and has the advantages such as high efficiency, low material consumption, convenient operation and economic maintenance cost.
Dairy skimming Cold Milk Separator
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
| DHNZ204 | 1000-1500 | 0.05 | 0.1-0.2 | 4 | 520 | 810*850*1350 |
| DHNZ360 | 1000-3000 | 0.05 | 0.1-0.3 | 7.5 | 1200 | 1530*1150*1500 |
| DHNZ470 | 3000-7000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*2030 |
Our service
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
