Product Details:
|
| Feature: | Large Flow,low Noise | Application: | Petroleum,chemistry |
|---|---|---|---|
| Pressure: | 0.5 MPa | Speed: | 290 Rpm |
| Motor: | 4 Kw | Outline Dimension: | 800*550*420 Mm |
| High Light: | high pressure centrifugal pump,stainless steel centrifugal pump |
||

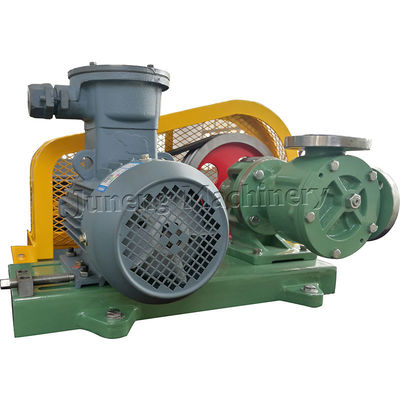

NCB fuel oil Transfer Gear Pump / Belt Drive Centrifugal Transfer Pump
Product description:
NCB Series Inside Engaged Gear Pump is a volumetric pump for transporting liquid, which has advanced structure and good performance.
This pump employs the inside engagement for gears, the pitch circles of both inside and outside gear are at one side, another side is separated by “swing link” on the pump cover and forms up feeding and discharging chamber.
The driving inside gear on the main shaft drives the pinions to rotate in same direction, in the feeding chamber, the gear teeth are separated each other, this forms up negative pressure surface, so it sucks in liquid.
Gear teeth enter into the engagement surface continuously in the discharging chamber and extrude liquid out.
Product Specifications:
| Model | Flow
m3/h
|
Pressure
Mpa
|
Motor Model
|
Motor Power
KW
|
Assembly style | Outline dimension
LxWxH (mm)
|
| NCB1.2/0.3 |
1.2
|
0.3
|
Y90L-6
|
1.1
|
Belt driven
or
Coupler
driven
or gear box driven
|
234x140x140
|
| NCB1.8/0.3 |
1.8
|
0.3
|
Y100L-6
|
1.5
|
254x153x153
|
|
| NCB3/0.3 |
3
|
0.3
|
Y132S-8
|
2.2
|
254x153x153
|
|
| NCB6/0.5 |
6
|
0.5
|
Y100L-4
|
3
|
700x420x323
|
|
| NCB8/0.5 |
8
|
0.5
|
Y100L-4
|
3
|
700x420x323
|
|
| NCB12/0.5 |
12
|
0.5
|
Y132M-4
|
4
|
800x550x420
|
|
| NCB16/0.5 |
16
|
0.5
|
Y160M-6
|
5.5
|
800x550x420
|
|
| NCB20/0.5 |
20
|
0.5
|
Y160L-6
|
7.5
|
800x550x420
|
|
| NCB12/0.7 |
12
|
0.7
|
Y160M-4
|
7.5
|
990x780x510
|
|
| NCB18/0.7 |
18
|
0.7
|
Y160L-6
|
11
|
990x780x510
|
|
| NCB24/0.5 |
24
|
0.5
|
Y160M-4
|
11
|
990x780x510
|
|
| NCB30/0.5 |
30
|
0.5
|
Y160L-4
|
15
|
990x780x510
|
|
| NCB15/1.5 |
15
|
1.5
|
Y180L-6
|
15
|
1230x1009x740
|
|
| NCB20/0.7 |
20
|
0.7
|
Y160L-6
|
11
|
1230x1009x740
|
|
| NCB25/0.7 |
25
|
0.7
|
Y180L-6
|
15
|
1230x1009x740
|
|
| NCB35/0.5 |
35
|
0.5
|
Y160L-4
|
15
|
1230x1009x740
|
|
| NCB40/0.5 |
40
|
0.5
|
Y200L-6
|
18.5
|
1340x1022x650
|
|
| NCB50/0.5 |
50
|
0.5
|
Y200L-6
|
18.5
|
1340x1022x650
|
|
| NCB60/0.5 |
60
|
0.5
|
Y200-6
|
22
|
1340x1022x650
|
|
| NCB70/0.5 |
70
|
0.5
|
Y225M-6
|
30
|
1340x1022x650
|
|
| NCB80/0.5 |
80
|
0.5
|
Y250M-6
|
37
|
1590x1356x840
|
|
| NCB100/0.5 |
100
|
0.5
|
Y280S-6
|
45
|
1590x1356x840
|
|
| NCB120/0.5 |
120
|
0.5
|
Y280M-6
|
55
|
1590x1356x840
|
Application:
It is applied to convey liquid from all kinds of light or volatility to deep sticky, even to half-solid. It is widely used in petroleum, chemistry, oil, paint etc.
Product competitive advantage:
The inner gearing principle is adopted for this pump. The annular and external gear pitch circles closely lean against one side, the other side is separated by covering with “ crescent plate” .
The annular gear driver the external gear for the same direction rotation. It has the advanced structure, fine quality, small volume, large flow, low noise, durable service life.
Why Choose Juneng brand
1. International High quality Certification production chain .
2. Manufacturer, more reasonable price .
3. Solid technical support and after-sales service
4. Exports to more than 20 countries and regions, good customers feedback.
5. One-top service, customised Exclusive project feasibility report .
