Product Details:
|
| Processing: | Separator Centrifuge | Control: | Automatic Control |
|---|---|---|---|
| After-sales Service Provided: | Overseas Service Center Available | Application: | Chemistry, Biotechnology |
| Warrenty: | 12 Months | Material: | Stainless Steel |
| High Light: | continuous horizontal centrifuge,sludge decanter centrifuge |
||

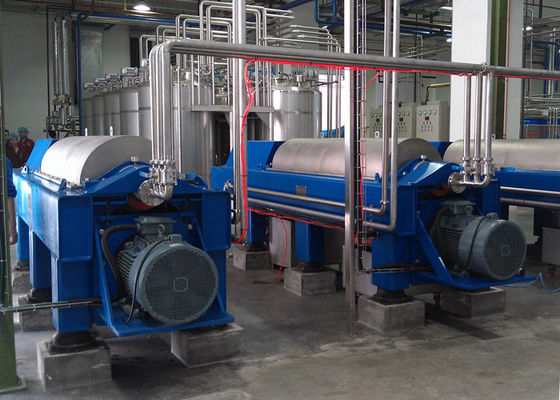

Horizontal Decanter centrifuge from JUNENG Separator USED for dewatering requirements
With the decanter centrifuges from JUNENG MACHINERY , two liquids with different specific gravities can be individually separated from solids.
The two liquids are separated in the liquid Zone and are decanted and discharged from the bowl through two discrete discharge systems to prevent cross-contamination.
There is generally a choice as to which phase is discharged under pressure and which by gravity .
The adjustment during the operation of the centrifuge ensures maximum purity of both liquid phases, thus often eliminating additional downstream separation equipment;
Application:
= chemistry
= pharmacy
= biotechnology
= food and beverage industry
= vegetable oil
= animal fat and regenerative fuels
= waster water
= oil sludge
Technological Parameters:
| Model | Drum diameter mm | Inlet liquid capacity㎥/h | Power of main/auxiliary motor Kw | Weight Kg | Dimension (max) mm |
| LW250 | 250 | 1-4 | 11/4 | 1200 | 2650*720*900 |
| LW(F)250 | 250 | 1-4 | 11/4 | 1200 | 2650*720*900 |
| LW250(W) | 250 | 1~5 | 11/4 | 1300 | 2750*720*900 |
| LW350 | 350 | 5~15 | 22/5.5 | 2000 | 3585*980*1238 |
| LW(F)350 | 350 | 5~15 | 22/5.5 | 2000 | 3585*980*1238 |
| LW350(W) | 350 | 5~18 | 15/5.5 | 2200 | 3412*1090*950 |
| LW(S)350 | 350 | 2~10 | 22/5.5 | 2000 | 3676*980*1238 |
*** F: Ex-proof, W:Waste water, S: Three phase FS:Ex-- proof and three phase
