|Product Alias:||Animal Oil Separator||Control System:||PLC Automatic Control|
|Function:||Three Phase Separation||Warranty Date:||12 Months|
conical disc centrifuge,
disc bowl centrifuge

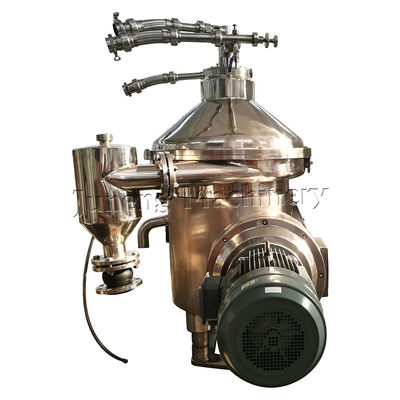

China Supplier Three Phase Stainless Steel 304 Disc Oil Separator / Oil and Soap Separator
During the dep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.
Three separation disc type separator centrifuge for animal oil factory is mainly used in refining meat oil from animals such as fishmeal facotry,animal oil factory, the capacity from 10t/d~600t/d.
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.
It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, low noise, good separation. The materials of centrifuge which contact with the parts are stainless steel which meets the requirements of food grade.
The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the feed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface,
the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.
The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump. The heavy and light phase will be output separately by small and big centripetal pump.
Product model list
|Model||Flowrate||Inlet pressure||Outlet pressure||Power||Weight|
|DHZ470||2500-7000 LPH||0.05 MPA||0.1-0.25 MPA||15 KW||1880 KG|
1. Continuous feeding
2. High separation factor
3. Automatic residue discharging
4. Concise bowl design without frequent washing
5. Hydraulic coupling driving with longer service
6. PLC system automatic control
1. Purifiation of animal fat
2. Purification of fish oil
3. Kitchen waste oil
4. Separation of fish pressed liquid
5. Waste oil
6. Hogwash oil
1. Professional Engineer wil recommend you the most suitable model according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
6. 12Months guarantee period from machine arriving date.
7. Sufficient spare parts in stock are available .
8. Technicians are availabled for overseas service.
9. 24 hours technical consultation .
10. The customer could get trained by our experienced tecnician.
11. Routine tracing will be done timely.
12. Guide you do the normal maintenance.
13. Suggestions and any comments &reflection from customer would be treated in priority.
14. Markting team will visiting if you need.
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
3) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
4) Q: What's the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
5) Q:Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time
Contact Person: Lee
