Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator

Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator
Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator

Large Image :  Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、ISO9001
Model Number: DHFY211
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Payment Terms: TT
Supply Ability: 40 set / months

Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator

Description
Name: Disc Bowl Centrifuge Material: Stainless Steel
Color: Green Feature: Continuous Operate
Function: Liquid - Solid Warrenty: Centrifugal Sand Separator
High Light:

centrifugal solid liquid separator

,

marine oil water separator

Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator



Disc Bowl Centrifuge description:



This kind centrifuge is a separator for separating solid, liquid and liquid for chemical, pharmaceutical, oil, foodstuff, milk industry, daily industry and defense industry etc.. It has three types for solid discharge such as central value deslagging, artificial deslagging, and water push deslagging. The first type is mainly used in the desoponificating of oil refining, and the last two types are used in degumming and dehydrating, they are all applicable for liquid-liquid-solid and liquid–solid separation.

It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, little noise, good separation.

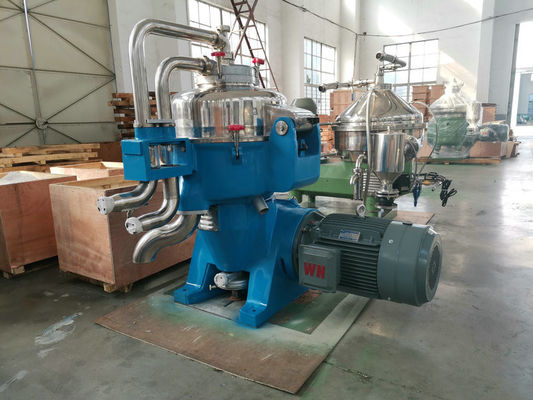

Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator 0





Disc Bowl Centrifuge Application:



Kitchen waste oil or illegal cooking oil



Such as slops, swill, pigwash



Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator 1



Disc Bowl Centrifuge Specifications:



Model Treatment capacity (L/H) Inlet Pressure (Mpa) Outlet pressure (Mpa) Motor power (Kw) Weight (Kg) Outline dimension (mm)
DHFY211 2000-5000 0.05 0.1-0.3 15 1880 1800*1200*1800
DHFY214 4000-10000 0.05 0.1-0.3 22 2200 1850*1550*2050



Disc Bowl Centrifuge advantage:



1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.

2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.


Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator 2
Liquid - Solid Disc Bowl Centrifuge / Industrial Centrifugal Sand Separator 3
