Product Details:
|
| Other Name: | Agitated Nutsche Filter And Dryer | Filter Area ㎡: | 0.5 |
|---|---|---|---|
| Shell Diameter ㎜: | 800 | Work Pressure MPa: | -0.1~0.3 |
| Nominal Volume ㎥: | 0.5 | Filter Cake Height ㎜: | 180 |
| High Light: | pressure nutsche filter,anfd dryer |
||

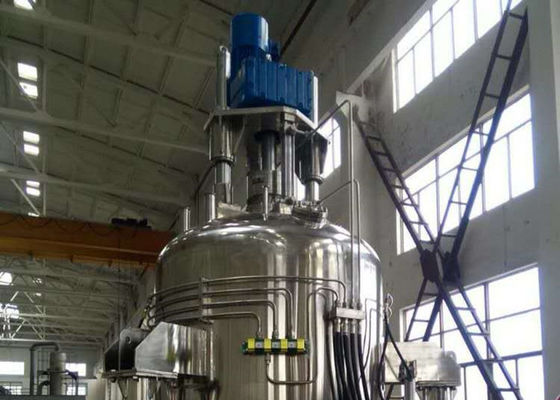

Automatic Agitated Nutsche Filtering Dryer / Filtering / Washing / Drying Machine
Product description:
GXG series Automatic Agitated Nutsche Filtering Dryer / Filtering / Washing / Drying Machine is a solid-liquid separation equipment . It has various functions such as filtration, washing, drying reaction and residue discharging automatically.
Application:
It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.
Product competitive advantage:
1, Full enclosed filter, no leakage, no pollution
2, Solid-liquid separation can be realized under pressure or vacuum state. Filter cakes evenly distributed when filtering which has good effect.
3, Stirring system can stepless speed regulating and multi-function work. It can enlarge furthest for the cake space, thus filter cake can be fully cleaned; the time of drying is reduced greatly, with high efficiency.
4, Discharge valve can discharge automatically which can lower labor intensity.
Introduction of Company:
Juneng Group has set-up a 1st class in-house laboratory for chemical composition analysis, metallographic analysis, spectrum analysis, performance analysis, radiographic inspection, magnetism inspection, ultra-sonic inspection and etc.
This is to imply with the latest advance instrumentations and rigorous working attitude to ensure every part of product is stable and reliable.
History:
Juneng Group was established at 1987. It has 31 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.
Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.
Product Specifications:
|
Model |
Filtration area ㎡ |
Shell |
Work |
Nominal |
Filter cake |
|
GXG-600 |
0.28 |
600 |
-0.1~0.3 |
0.2 |
150 |
|
GXG-800 |
0.5 |
800 |
-0.1~0.3 |
0.5 |
180 |
|
GXG-1200 |
1.1 |
1200 |
-0.1~0.3 |
1.3 |
250 |
|
GXG-1600 |
2.0 |
1600 |
-0.1~0.3 |
2.8 |
350 |
|
GXG-2000 |
3.1 |
2000 |
-0.1~0.3 |
4.8 |
400 |
|
GXG-2400 |
4.5 |
2400 |
-0.1~0.3 |
6.5 |
450 |
|
GXG-2600 |
5.3 |
2600 |
-0.1~0.3 |
8.7 |
450 |
|
GXG-2800 |
6.0 |
2800 |
-0.1~0.3 |
12 |
450 |
|
GXG-3000 |
7 |
3000 |
-0.1~0.3 |
13 |
500 |
|
GXG-3200 |
8 |
3200 |
-0.1~0.3 |
14.5 |
500 |
