Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen

Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen
Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen

Large Image :  Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen

Product Details:
Place of Origin: China(Yixing, Jiangsu)
Brand Name: Juneng Machinery
Certification: CE、 ASME U
Model Number: Filter screen
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: $ 50-1,000 / unit
Packaging Details: Standard Wooden Case
Delivery Time: 60 days
Payment Terms: TT
Supply Ability: 40 set / months

Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen

Description
Other Name: Filter Screen Application: Vertical Pressure Leaf Filters
Function: Filtering Advantage: Efficient Retention Of Solids
Direction: Vertical Cleaning: Eacy To Clean
High Light:

vertical metal leaf filter

,

horizontal plate pressure filter

Stainless Steel Solid-liquid Filter Weaves Screen Vertical Pressure Leaf Filters used





Product competitive advantage:



The filter leaves have the following technical characteristics:

---- Efficient retention of solids

---- Consistent flow rates during filtration cycle

---- Highly durable

---- Smooth surface for a good cake discharge

---- Environmentally friendly, since they are reusable and recyclable



Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen 0

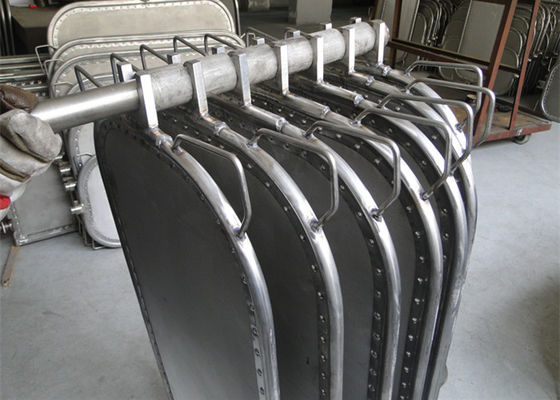

In many solid-liquid filters, filter leaves are used as a filtration media.

The filter leaves are the main working part of a filter.



It is composed of multiple layers of stainless steel gauze with different dimensions and the filtrate channel is located at its center and the periphery of the filter gauze is the rectangle or circular cross section frame made of stainless steel plate which is used as the filtrate collecting channel and is riveted with the filter plate and filter plate frame.



There is the joint of the discharge gate at the under-part of the filter gauze that is plugged into the liquid collecting tube. The socket between the joint and the liquid collecting tube is sealed with “O” ring.



Application:



Crude palm oil,  crude soya bean oil ,  refined soya bean oil,  diesel oil,  lubricating oil,  resin ,  rice oil ect.



Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen 1





Packing:



Plastic film package inside, wooden case package outside





History:



Juneng Group was established at 1987. It has 23 year history. Now its three production bases with a total capacity of 280000 square meters in Nanjing City and Yixing City of Jiangsu Province.



Juneng’s success is contributed by the commitment of every member of the Company. In addition, the specialty and potential of each member is being respected and disinterred.



Stainless Steel Filter Screen Mesh , Solid Liquid Filtration With Weaves Screen 2





Service:



Before sales:



1. Send every client a preferential quotation.



2. Markting team will visiting if you need.



After service :

1. Routine tracing will be done timely.



2. Provide Clients one-yar warranty to make sure the machine work well.


3.  We always keep certain inventory level of spare parts, which means the replacement can be sent to you timely.





Why Choose Juneng brand



1. One-top service, customised Exclusive project feasibility report



2. International High quality Certification production chain .



3. Manufacturer, more reasonable price
